NdFeB Pot Magnet, Magnetic hook
Item No.：
C016
Category：
Summary
Hongrui is a high-tech enterprise engaged in the research, production, application and development of rare earth NdFeB permanent magnet materials
TEL: +86-574-88225271
E-mail: hr@nbhrmagnet.com
Description
NdFeB magnet material, as the latest result of the development of rare earth permanent magnet materials, is known as "Magnetoking" because of its excellent magnetic properties. NdFeB magnetic material is an alloy of neodymium, iron oxide, etc. Also known as magnet. NdFeB has extremely high magnetic energy product and correction force, and the advantages of high energy density make NdFeB permanent magnet materials widely used in modern industry and electronic technology, so that instrumentation, electroacoustic motors, magnetic separation magnetization and other equipment miniaturization, lightweight, thinning is possible. The advantages of NdFeB are high cost performance and good mechanical properties; The disadvantage is that the Curie temperature point is low, the temperature characteristics are poor, and it is easy to pulverize and corrode, and it must be improved by adjusting its chemical composition and adopting surface treatment methods to meet the requirements of practical applications.
HongRui Mag, Your solid and reliable partner
NdFeB Pot Magnet and Magnetic Hook:
NdFeB Pot Magnet and Magnetic Hook are suitable for small sized magnetic products with maximum pull strength (Especially when in direct contact with ferromagnetic e.g. mild steel surfaces). The pull force achieved is related to the surface that is being clamped onto (material type, thickness, flatness, friction levels etc), its quality (e.g. rust free), its size (thickness plus total surface area) and the grade of Neodymium magnet.
Neodymium magnetic hook is made of strong Neodymium magnet and a steel cup with normal hook attached at the top, it can hold almost anything ferromagnetic you need to keep with easy reach, especially convenient for kitchen or workshop use.
We are offering neodymium pot magnet and magnetic hook in a variety of different sizes from D10mm to D75mm, different size get different pull force, Ni plated is the most popular coating, but we can also paint outer steel cup and hook with different colors if requested, such as Yellow, Red, White, Blue, Black and more.

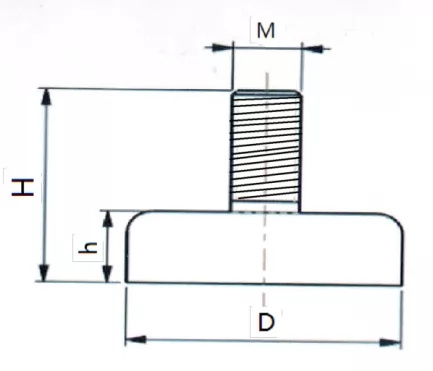

(1) NdFeB Pot Magnet with Male Threaded
|
Model |
D |
M |
H |
h |
Net Weight(g) |
Attraction Force(Kg) |
|
TC 10 |
10 |
3 |
14.3 |
5 |
3.4 |
2 |
|
TC 12 |
12 |
3 |
14 |
5 |
4.4 |
3.5 |
|
TC 16 |
16 |
4 |
14 |
5.2 |
9 |
5.5 |
|
TC 20 |
20 |
4 |
16 |
7.2 |
16 |
9 |
|
TC 25 |
25 |
5 |
17 |
7.7 |
26 |
22 |
|
TC 32 |
32 |
6 |
18 |
7.8 |
43 |
34 |
|
TC 36 |
36 |
6 |
17.6 |
7.6 |
54 |
41 |
|
TC 42 |
42 |
6 |
18.7 |
8.8 |
83 |
68 |
|
TC 48 |
48 |
8 |
24 |
10.8 |
130 |
81 |
|
TC 60 |
60 |
8 |
31.5 |
15 |
256 |
113 |
|
TC 75 |
75 |
10 |
35 |
17.8 |
510 |
164 |

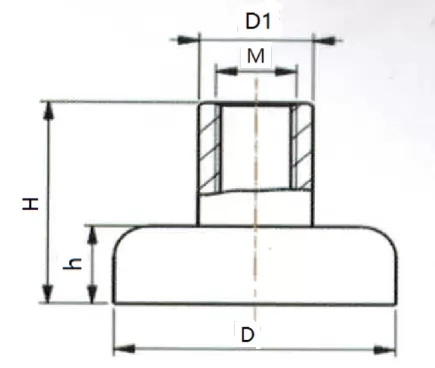

(2) NdFeB Pot Magnet with Female Threaded
|
Model |
D |
D1 |
M |
H |
h |
Net Weight(g) |
Attraction Force(Kg) |
|
TD 10 |
10 |
6 |
3 |
12.5 |
5 |
3.8 |
2 |
|
TD 12 |
12 |
6 |
3 |
12.5 |
5 |
4.9 |
3.5 |
|
TD 16 |
16 |
6.5 |
4 |
13.5 |
5.2 |
9 |
5.5 |
|
TD 20 |
20 |
6.5 |
4 |
15 |
7.2 |
17 |
9 |
|
TD 25 |
25 |
7.5 |
5 |
17 |
7.7 |
28 |
22 |
|
TD 32 |
32 |
10 |
6 |
18 |
7.8 |
45 |
34 |
|
TD 36 |
36 |
10 |
6 |
18.5 |
7.6 |
55 |
41 |
|
TD 42 |
42 |
10 |
6 |
18.8 |
8.8 |
84 |
68 |
|
TD 48 |
48 |
12 |
8 |
24 |
10.8 |
130 |
81 |
|
TD 60 |
60 |
12 |
8 |
28 |
15 |
263 |
113 |
|
TD 75 |
75 |
17 |
10 |
35 |
17.8 |
515 |
164 |

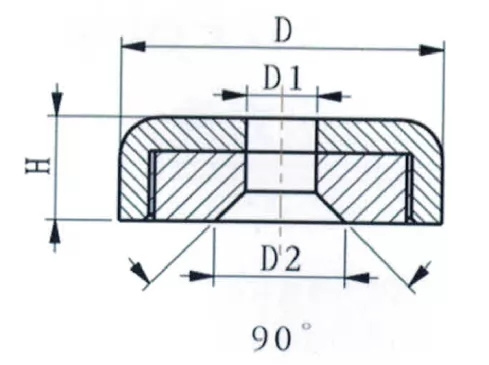

(3) NdFeB Pot Magnet with Countersunk Mounting (Shallow Pot)
|
Model |
D |
D1 |
D2 |
H |
Net Weight(g) |
Attraction Force(Kg) |
|
TA 16 |
16 |
3.5 |
6.5 |
5.2 |
7 |
5 |
|
TA 20 |
20 |
4.5 |
8.6 |
7.2 |
15 |
6 |
|
TA 25 |
25 |
5.5 |
10.4 |
7.7 |
24 |
14 |
|
TA 32 |
32 |
5.5 |
10.4 |
7.8 |
39 |
25 |
|
TA 36 |
36 |
6.5 |
12 |
7.6 |
50 |
29 |
|
TA 42 |
42 |
6.5 |
12 |
8.8 |
77 |
37 |
|
TA 48 |
48 |
8.5 |
16 |
10.8 |
120 |
68 |
|
TA 60 |
60 |
8.5 |
16 |
15 |
243 |
112 |
|
TA 75 |
75 |
10.5 |
19 |
17.8 |
480 |
162 |

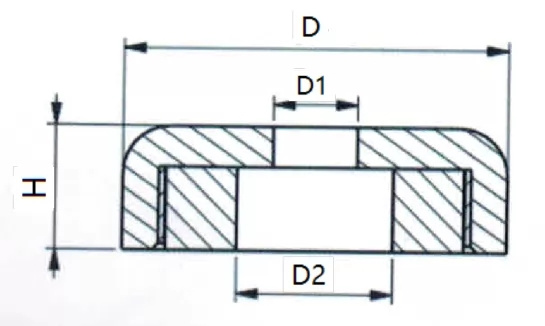

(4) NdFeB Pot Magnet with Through Hole Mounting
|
Model |
D |
D1 |
D2 |
H |
Net Weight(g) |
Attraction Force(Kg) |
|
TB 16 |
16 |
3.5 |
6.5 |
5.2 |
6.5 |
4 |
|
TB 20 |
20 |
4.5 |
8 |
7.2 |
13 |
6 |
|
TB 25 |
25 |
5.5 |
9 |
7.7 |
22 |
14 |
|
TB 32 |
32 |
5.5 |
9 |
7.8 |
38 |
23 |
|
TB 36 |
36 |
6.5 |
11 |
7.6 |
48 |
29 |
|
TB 42 |
42 |
6.5 |
11 |
8.8 |
75 |
32 |
|
TB 48 |
48 |
8.5 |
15 |
10.8 |
114 |
63 |
|
TB 60 |
60 |
8.5 |
15 |
15 |
235 |
95 |
|
TB 75 |
75 |
10.5 |
18 |
17.8 |
460 |
155 |

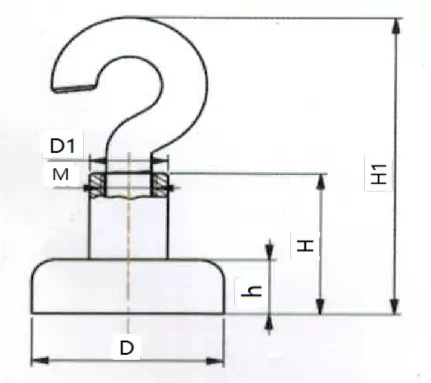

(5) NdFeB Magnetic Hook：
|
Model |
D |
D1 |
M |
h |
H |
H1 |
Net Weight(g) |
Attraction Force(Kg) |
|
TD 10 |
10 |
6 |
3 |
5 |
12.5 |
34.5 |
5.3 |
2 |
|
TD 12 |
12 |
6 |
3 |
5 |
12.2 |
34.5 |
6.4 |
3.5 |
|
TE 16 |
16 |
6.5 |
4 |
5.2 |
13.5 |
35.7 |
12 |
5.5 |
|
TE 20 |
20 |
6.5 |
4 |
7.2 |
15 |
37.8 |
21 |
9 |
|
TE 25 |
25 |
7.5 |
5 |
7.7 |
17 |
44.9 |
33 |
22 |
|
TE 32 |
32 |
10 |
6 |
7.8 |
18 |
47.8 |
54 |
34 |
|
TE 36 |
36 |
10 |
6 |
7.6 |
18.5 |
49.8 |
64 |
41 |
|
TE 42 |
42 |
10 |
6 |
8.8 |
18.8 |
50 |
93 |
68 |
|
TE 48 |
48 |
12 |
8 |
10.8 |
24 |
61 |
150 |
81 |
|
TE 60 |
60 |
12 |
8 |
15 |
28 |
66 |
283 |
113 |
|
TE 75 |
75 |
17 |
10 |
17.8 |
35 |
84 |
555 |
164 |
Main info of Pot Magnet and Magnetic Hook：
1. Name：NdFeB Pot Magnet, Magnetic Hook, Color Paint Magnetic Hook
2. Material：NdFeB Magnet, Metal Shell, Plastic Spacer
3. Normal Working Temperature：≤80℃
4. Popular Grade of Magnet：N35, N38 etc
5. Coating：Nickel, Zinc, Colorful paint etc
6. Pull Force：2-180Kg, Customized service is also available.
7. Color：Sliver, Red Paint, White Paint, colorful Paint etc
8. Packing：Standard packing for Sea and Air.
9. Delivery time: 10—20 days
Applications:
There are many applications for NdFeB Pot Magnets and Magnetic Hook, mainly in applications where a strong clamping force is required.
It is useful for hanging hot pads, keys, utensils, mirrors, ornaments and other decorations on metal doors, door / cupboard and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, refrigerators, filing cabinets or other metal surfaces.
|
Our advantages |
1. We are manufacturer |
|
2. More than 10 years in this industry |
|
|
3. ISO/TS 16949, ISO 9001, ISO 14001, RoHS, Reach |
|
|
4. Effective & professional technical support |
|
|
5. Strict QC & top quality |
|
|
6. Reasonable & competitive prices |
|
|
7. Professional & efficient service |
We can provide a complete service from consult, design to sampling and bulk production, Should you have any questions, please contact our professional engineer.
